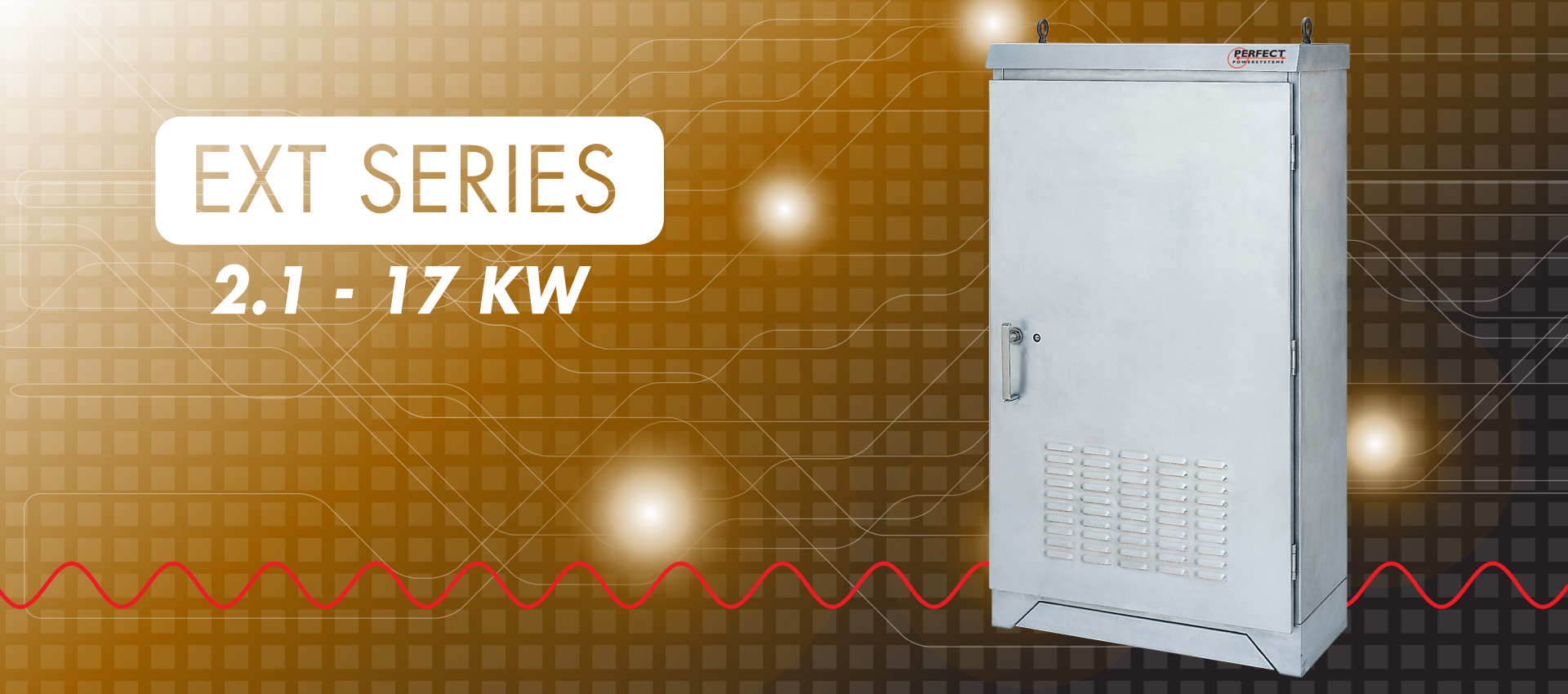

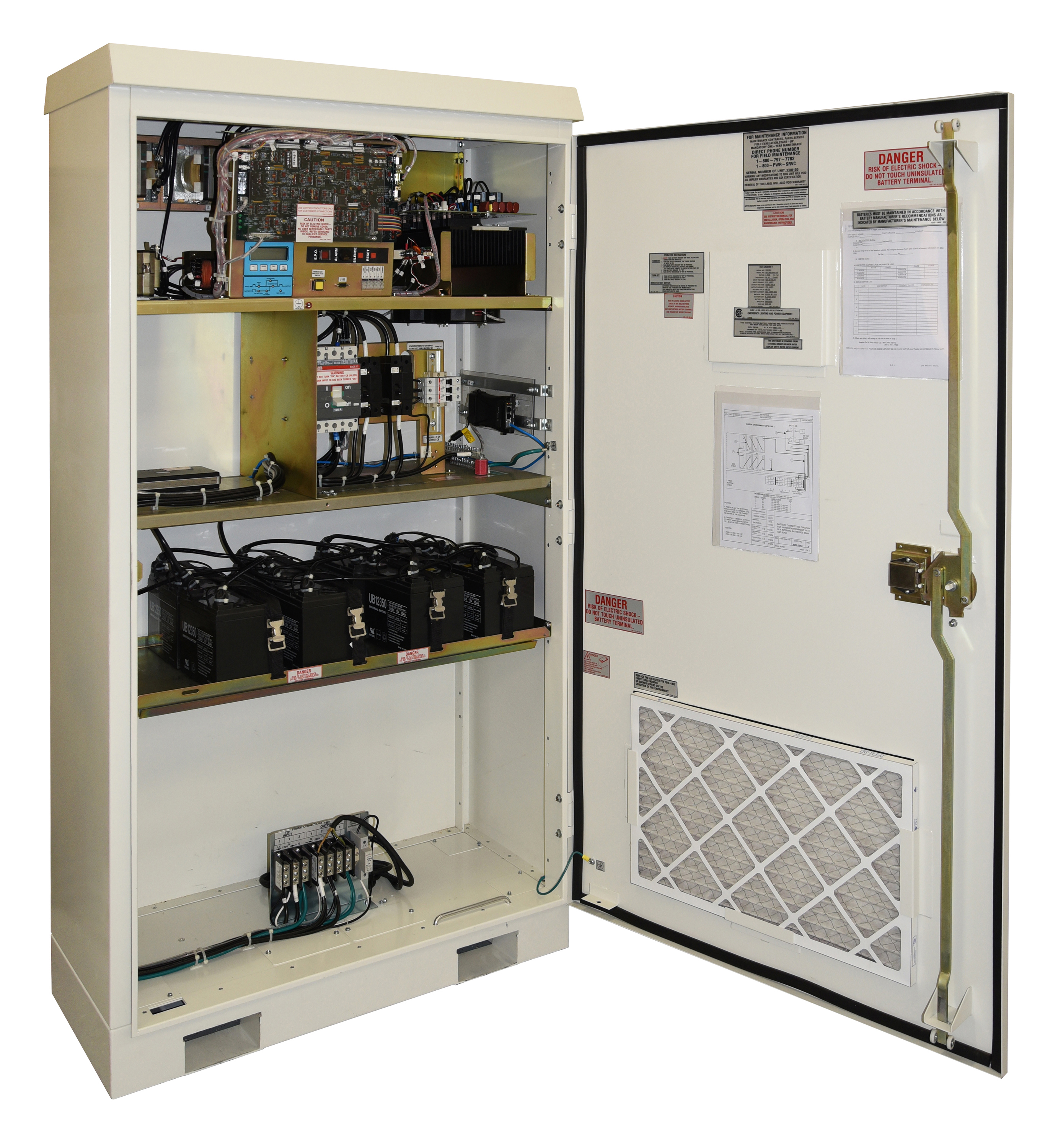

EXT SERIES
OUTDOOR, HARSH ENVIRONMENT
Central Lighting Inverter
2.1 to 17 kW
UL Listed to UL924 Lighting and UL1778 UPS Standard, by CSA
Suitable for Harsh Environment, Outdoor Applications
AC Line Conditioning for Signals, Signs & Lighting temperatures.
Meets NEMA Requirement
Fail-Safe Provision
Efficiency: 94% online / 98% standby
Optional Global Monitoring System (GMS)
1 year Factory Warranty
SPECIFICATIONS
| INPUT Specifications | |
| Input Voltage | 120, or 208, or 240, 277 or 480 VAC single phase |
| Input Frequency | 60 Hz ±3% |
| Power Factor | Unity 1.0 |
| Overcurrent Protection | Circuit Breaker |
| Power Connection | Hard wired (terminal block) |
| Input Configuration | 2 wire (hot, neutral) plus ground |
| OUTPUT Specifications | |
| Output Power Rating | 2.1-17 kW available (Normal Mode / Emergency Mode) |
| Output Voltage | 120, 208, 240, 277, and 480 VAC, single phase |
| Voltage Regulation | ±3% No Load to Full Load; ±3% High Line to Low Line |
| Frequency | 60 Hz ±0.25 Hz (when in inverter) |
| Wave Shape | Sine Wave |
| Harmonic Distortion | <7% THD; <5% Single Harmonic |
| Crest Factor | Up to 3 to 1 |
| Power Factor | 1.0 unity |
| Overload | 115% for Ten (10) minutes; 125% Surge |
| Protection | Fault Current Limited by Ferroresonant Design |
| Noise Rejection | -120 dB Common Mode; -60 dB Normal Mode |
| BATTERY Specification | |
| Battery Run Time | 90 min |
| Battery Type | Sealed, Maintenance-Free, Lead Calcium |
| Nominal DC Link | 48 or 120 VDC link |
| Overcurrent Protection | Circuit Breaker |
| PHYSICAL Specifications | |
| Accessibility | All servicing is through the front |
| Cabinet Entry | Bottom |
| Mounting | Four (4) mounting holes provided to anchor enclosure to pedestal |
| Cabinet Size (Standard Run Time) |
2.1 to 5.0 kW: 40"(W) x 76"(H) x 20"(D) 6 to 17 kW: 52"(W) x 80"(H) x 33.5"(D) Cabinet sizes may vary depending on battery run time. |
| ENVIRONMENTAL Specifications | |
| Humidity | 0-95% RH w/no condensation |
| Outside Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Internal Temperature | 75°F with ±5°F tolerance) |
| Altitude | Up to 13000 ft (3,962 meters) |
| Safety Agencies | CSA Listed to UL1778, UL924, UL924A |
|
Download |
PDF format |
Word Format |
STP files for this product are available on our Downloads page.
