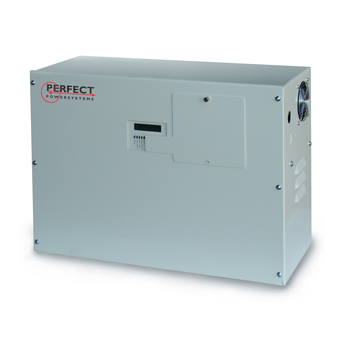

POWER LITE
Wall Mountable Central Lighting Inverter
200 to 490 Watt
Listed to UL 924 by ETL
Pure Sine Wave Output preferred for LED Lighting Loads
Automatic monthly and annual self testing
Compact 24" wide x 17" high x 9.5" deep, space-saving enclosure with front access
Double Conversion, "no-break" online system for all applications and lamp types
Bright function indicators for rapid identification of system status
Enhanced protection utilizing latest TVSS technology
1 Year Warranty
Optional RS-232 and USB comm port with monitoring software
Optional SNMP/Web card
SPECIFICATIONS
| Power Rating | 200, 300, 490 Watts |
| Input Voltage | 120 or 277 Volts ±10% On-line zero transfer time |
| Output Voltage | 120 or 277 Volt |
| Output Frequency | 50 or 60 Hz. ±5% (battery mode) |
| Output Voltage Reg. | ±4% for all loads and for Battery Discharge mode |
| Output Waveform | Sine-wave, THD <3% at linear load |
| Output Protection | Current limiting and short circuit protection |
| Battery | Sealed lead acid, maintenance free |
| Battery Time | Recharge time per UL 924 |
| Indicator LCD | UPS Status |
| Indicator LED | Green, UPS ON, Output available Orange: Battery mode, Bypass mode, Red: Fault |
| Audible Alarm | Battery Mode, Overload, Fault |
| Environmental | Humidity: 0-95% RH w/no condensation |
| Safety Agencies | UL924, NFPA101, NFPA70, NEC, and OSHA. |
| Dimension | 24" Wide x 17" High x 9.5" Deep |
