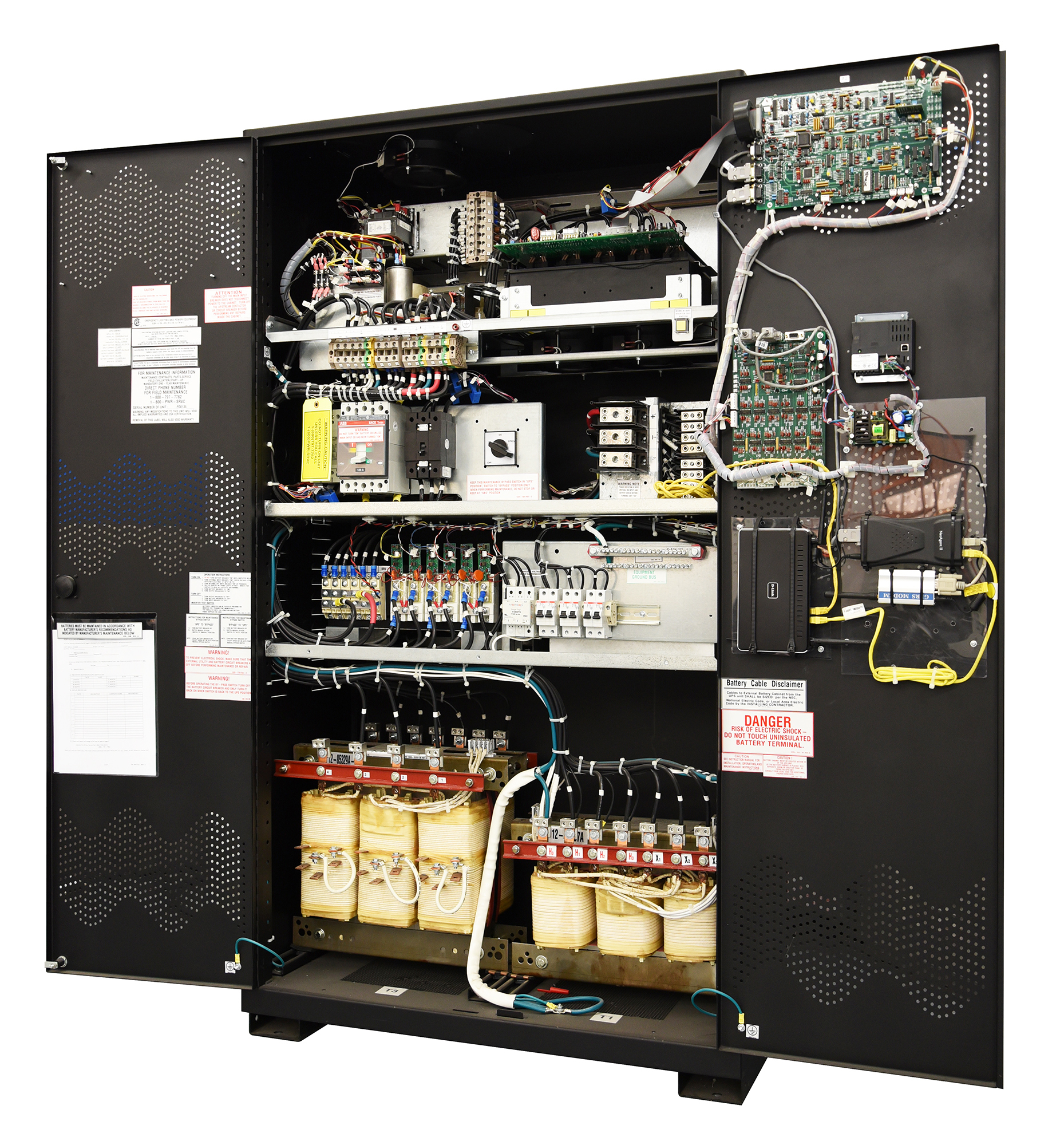

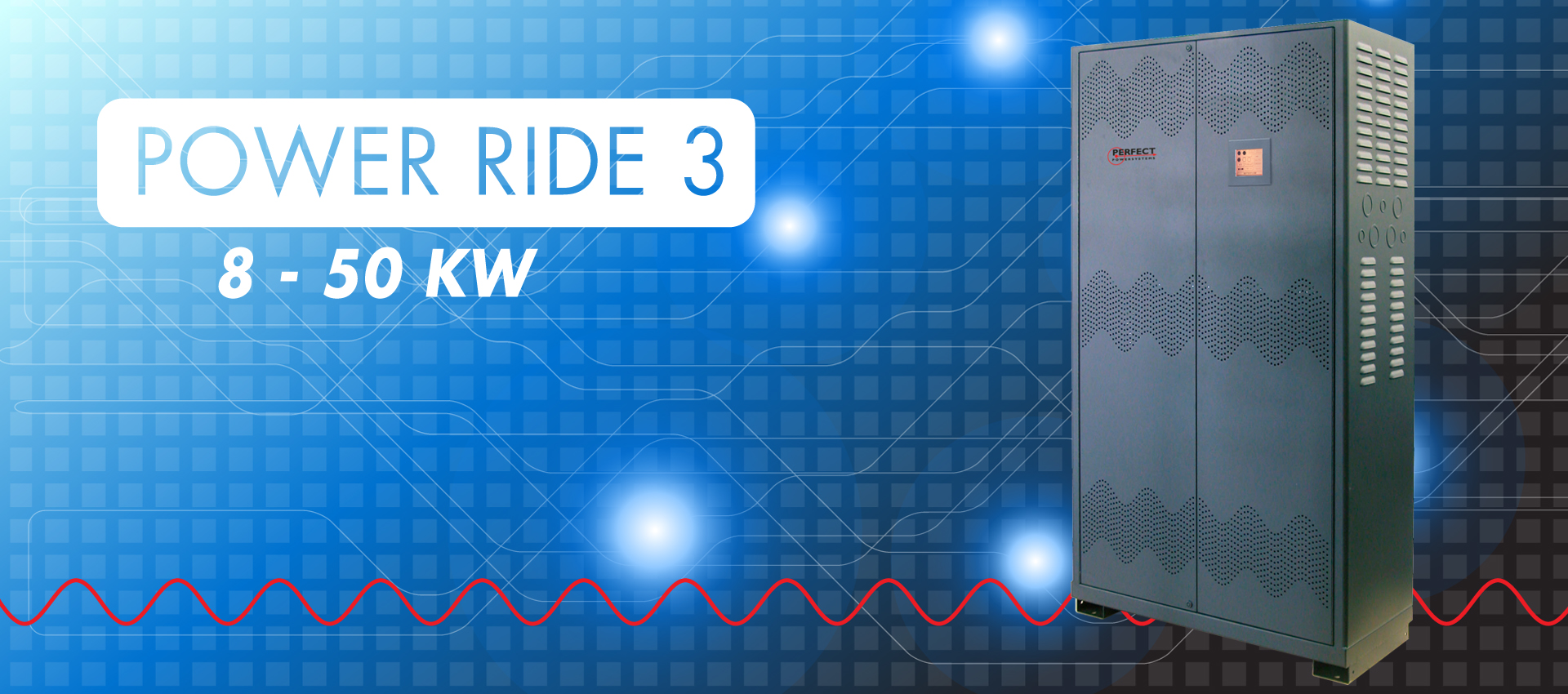

POWER RIDE 3
Three Phase Emergency Central Lighting Inverter
8 to 50 kW
CSA Listed to UL924, UL924A, & UL1778
Incandescent, Fluorescent, HID, HPS, LED
Power Factor & Energy Efficient Ballast
Efficiency: 94% online / 98% standby / Fast Transfer
Sinusoidal Waveform
Pulse Width Modulated (PWM)
Generator Compatible
LCD Panel for Continuous Self Diagnostics
Modular Assembly for Ease of Installation
Battery Exerciser
Double Conversion Technology
Stackable Cabinets
Seismic Rated with Bracket Kit
Remote Monitoring
RS-232 & 485
1 Year Factory Warranty
SPECIFICATIONS
| Power Rating | 8 to 50 KW |
| Input Voltage | 208Y/120 or 480Y/277 VAC (-20% to +15%) |
| Output Voltage | 208Y/120 or 480Y/277 VAC |
| Output Frequency | 60 Hz ±0.5 Hz |
| Output Voltage Reg. | ±3%, Regulated within CBEMA curve |
| Output Wave Form | Sine-Wave < 5% THD. |
| Efficiency | 94% online / 98% standby / Fast Transfer |
| Crest Factor | 3:1 Typical |
| Surge Protection | The UPS will protect itself and the load against surges as defined in ANSI/IEEE C62.41 Categories A and B. |
| Isolation | Complete from the line. Output neutral bonded to ground |
| Noise Isolation | -120 dB Common-Mode; -60 dB Transverse-Mode |
| Battery | Sealed maintenance-free (AGM) battery |
| Battery Volt | KW dependent |
| Recharge Current | Conforms to UL Standards |
| External Battery | Provisions for hardwire connection of optional external battery cabinets or DC source. |
| Environmental | Humidity: 0-95% RH w/no condensation Operating Temperature: UPS: 0°C to 40°C. (32°F to 104°F); Battery: 20°C to 30°C. (68°F to 86°F) Storage Temp: -20 to 60°C. (-4 - 140°F) Altitude: Up to 10,000 ft |
| Safety Agencies | UL, CSA Listed UL1778, UL924,MEA |
